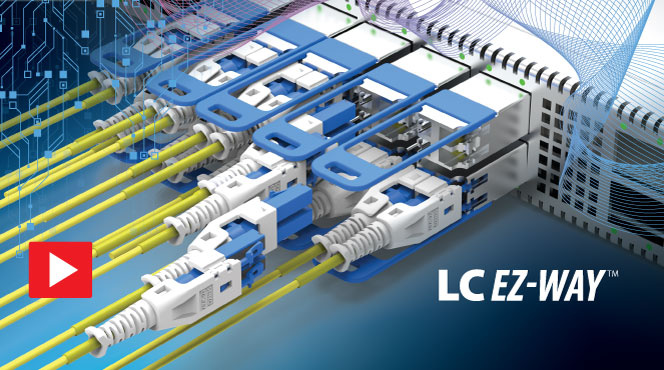

The SENKO LC EZ-WAY Connector features a versatile, high-performance option for seamless integration in data transmission. Featuring an innovative push-pull boot design, it also supports polarity reversing without tools, includes a visual polarity indicator and supports a belly-to-belly setup for 800G transceivers. Suitable for data centers, telecommunications, and enterprise networks, it manages high data rates and is compatible with 2.0mm and 3.0mm cables, exemplifying ease of use, high performance, and versatility.
- 推拉尾套设计
- 极性可转换
- 高密度，兼容QSFP
- 背对背配置
- 兼容2.0/3.0mm光缆
| 参数 | 单模 | 多模 |
| UPC | MM | |
| 标准 | ||
| 典型插入损耗（dB） | 0.12 | 0.15 |
| 最大插入损耗（dB） | 0.30 | 0.30 |
| 典型回波损耗（dB） | ≥55 | ≥25 |
| 工作温度 (°C) | - 40至+75 | |
| 耐用性 | 典型变化值<0.2dB，500次重复插拔 | |
| 插芯Ø | 125.5μm | 127μm |
High Density Panel Mounting
The LC EZ-WAY Connector is ideal for high-density panel applications due to its compact design and easy installation. Having up to 224 connectors in a standard 1U Modular Patch Panel it allows for efficient space utilization and reliable connections, making it perfect for environments where space is limited and high performance is essential. This connector ensures optimal functionality and minimal signal loss.
QSFP-DD “Belly-to-Belly” Compatible
The LC EZ-Way has a slimmer connector body design to enable a dual-interface transceiver. The connector dimension is designed to match the precise QSFP-DD footprint with a belly-to-belly configuration. It also has a push-pull boot to support easy connector insertion and removal.
The Push-Pull Boot is an innovative design that allows for quick and easy patching and removal of the connector, even in crowded or high-density environments.
This design makes the connector user-friendly and efficient, enabling quick installation and removal without the need for additional tools.
Yes, the Push-Pull Boot is optimized for high-density environments, making it ideal for data centres and telecommunications setups where space is limited.
By allowing quick and easy polarity reversal, this feature helps in organizing cables more efficiently, reducing clutter and enhancing airflow within enclosures.
Polarity reversing without the need for tools simplifies the installation process and includes a visual polarity indicator for easy identification.
The belly-to-belly setup supports 800G transceivers, which is ideal for high data rate applications.
