Overcoming the Challenges of Photonic Integrated Circuit (PIC) Connectivity with SENKO’s Metallic PIC Connector (MPC)

导言

Photonic Integrated Circuits (PICs) are at the forefront of next-generation optical communication, data centers, and quantum computing. However, achieving seamless connectivity between PICs and optical fibers remains a significant challenge.

Issues such as modifications to Process Design Kits (PDKs), high costs, power requirements, fiber coupling scalability, packaging robustness, and manufacturing limitations hinder the widespread adoption of PIC technology.

SENKO, a global leader in optical connectivity, offers a comprehensive and robust PIC connectivity portfolio, solving critical issues in design, manufacturing, and deployment. This breakthrough overcomes these challenges, enabling a more reliable, scalable, and cost-effective connectivity approach for PICs.

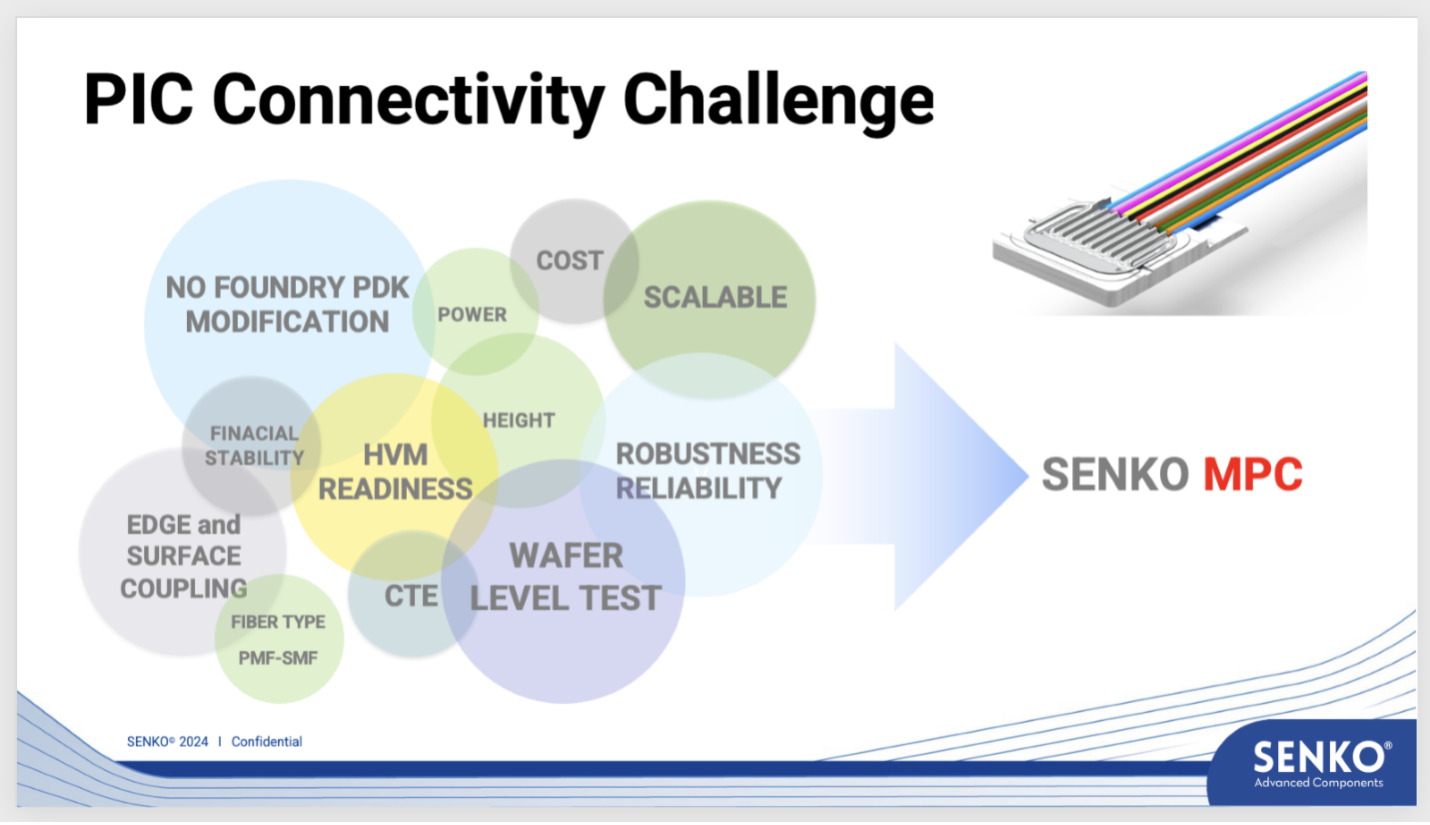

Challenges in PIC Connectivity

1. Modifications to Process Design Kits (PDKs)

Many PIC connectivity solutions require adjustments to existing PDKs, which significantly slow down adoption. Foundries must integrate new components or alter fabrication processes, introducing delays and increasing development costs. The lack of foundries that are capable of PDK modifications is also a limiting factor.

MPC eliminates the need for extensive modifications to foundry PDKs, enabling seamless integration with existing fabrication processes. This accelerates the adoption of PIC technology without introducing additional complexity.



2. High Cost and Power Requirements

The cost of PIC packaging and connectivity remains a major hurdle. High-precision optical alignment, specialized fiber arrays, and active alignment techniques drive up costs. Additionally, some PIC connectivity solutions introduce excessive power consumption, limiting energy efficiency for data centers, AI clusters, and hyperscalers.

SENKO’s solution reduces the reliance on costly active alignment methods, lowering overall manufacturing expenses. The MPC’s optimized optical path ensures minimal Insertion Loss and power consumption, making it ideal for high-performance applications.



3. Scalability & Height Constraints of Fiber Coupling

Traditional fiber coupling methods face scalability issues, especially when multiple I/O channels are required. Surface coupling, for instance, presents height constraints that complicate integration into compact form factors. These issues become more pronounced as PIC designs evolve to accommodate more optical ports.

The MPC’s low-profile design overcomes height constraints associated with surface coupling, facilitating denser PIC layouts. This scalability is crucial for next-generation optical interconnects, data centers, and high-speed computing.



4. Robustness and Reliability of PIC Packaging

PIC packaging must ensure long-term stability and durability under varying environmental conditions to withstand handling, temperature fluctuations, and reflow process. Traditional fiber attachment methods, such as adhesive-based bonding, are prone to misalignment, degradation over time, and failure due to mechanical stress.

SENKO’s MPC provides superior mechanical stability and environmental resilience. The metallic construction offers improved thermal and mechanical performance, mitigating stress-related failures, ensuring long-term stability.



5. Wafer-Level Testing and High-Volume Manufacturing (HVM)

Efficient wafer-level testing is critical for HVM of PICs to achieve mass production. However, current solutions often lack standardized interfaces for rapid and repeatable testing. The absence of scalable test solutions increases manufacturing costs and reduces yield rates.

MPC supports wafer-level testing, enabling rapid and repeatable characterization of PICs before dicing and packaging. This significantly improves manufacturing efficiency, reduces waste, enabling rapid scaling and enhances yield rates for high-volume production.



6. Requirement for Both Edge and Surface Coupling

Different applications demand either edge or surface coupling. Some solutions only support one approach, limiting their versatility. Achieving a universal solution that caters to both coupling types is crucial for maximizing compatibility across diverse use cases, ensuring versatility across different photonic architectures.

Unlike traditional solutions that cater to only one coupling type, SENKO’s MPC supports both edge and surface coupling configurations, making it versatile for a wide range of PIC applications.



7. Fiber Type Compatibility

PICs need to interface with a variety of optical fiber types, including single-mode, and Polarization-Maintaining (PM) fibers. Ensuring broad compatibility without excessive customization adds another layer of complexity to PIC connectivity.

MPC seamlessly interfaces with both fiber types. This ensures a flexible and adaptable connectivity solution for different application requirements.



8. Mismatch in Coefficient of Thermal Expansion (CTE)

The materials used in PICs (such as silicon, indium phosphide, and silicon nitride) have different CTEs compared to optical fibers and connectors. Temperature variations cause expansion differences between materials, affecting alignment. This mismatch can lead to stress-induced failures, compromising long-term reliability.

The metallic design of MPC effectively mitigates CTE mismatch issues, ensuring stable performance across temperature variations and extended operational lifetimes.



结论

As the demand for high-performance PICs grows, overcoming connectivity challenges is essential for scalability and commercial viability. SENKO is uniquely positioned to address all these challenges, offering the most comprehensive solution by addressing PDK compatibility, cost, power efficiency, scalability, reliability, manufacturing efficiency, and fiber compatibility. SENKO remains at the forefront of photonic connectivity, enabling next-generation optical communication with cutting-edge solutions.

With expertise in high-density, low-loss optical interconnects, wafer-level testing compatibility, and support for advanced photonic architectures, SENKO provides the ultimate solution for Silicon Photonics and Co-Packaged Optics markets. By adopting MPC, PIC developers can achieve robust, high-volume, and cost-effective optical connectivity, accelerating the widespread adoption of photonic integration.
