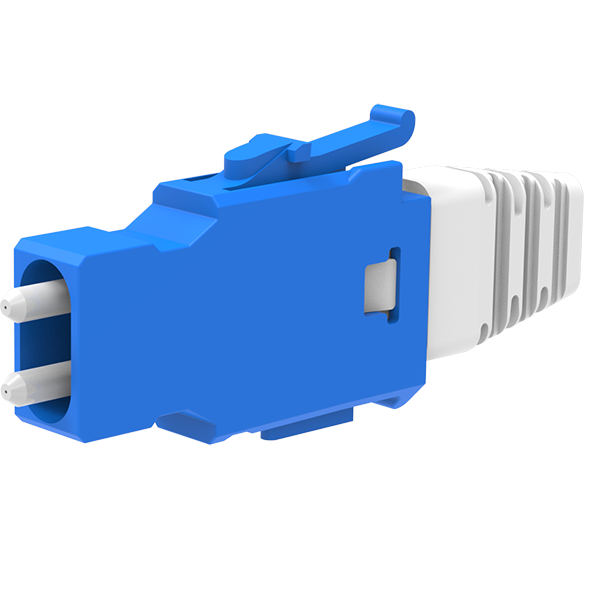

The SN® Junior connector is designed for applications that require less space consumption BTW (Behind The Wall) than conventional patch cord connectors. With a much shorter body length and boot length than conventional connectors, the SN Junior offers users the chance to reduce the depth of transition cassettes and modules as well as free up valuable space within fiber management panels for additional hardware such as splice cassettes, coherent devices or optoelectronic equipment.
- Latch locking mechanism
- Accepts 2 x 900 μm buffered fibers
- Uses proven LC ferrule technology
- Extra small for space limited installations
| Parameters | Single-mode | Multimode | |||
| UPC | APC | MM | |||
| SM Premium Low Loss | SM Premium | SM Premium Low Loss | SM Premium | Premium | |
| Typical Insertion Loss (dB)* | 0.05 | 0.08 | 0.07 | 0.12 | 0.05 |
| Max Insertion Loss (dB)* | 0.15 | 0.20 | 0.15 | 0.25 | 0.15 |
| Typical Return Loss (dB) | ≥55 | ≥65 | ≥25 | ||
| Operating Temperature (°C) | -40 to +75 | ||||
| Durability | <0.2dB typical change, 500 mating’s | ||||
| Ferrule Ø | 125μm | 127μm | |||
* Per random mating testing IEC 61753-1
- Pigtail splicing modules and panels
- Coherent optics
- MPO/SN-MT to SN transition modules
- Optoelectronic equipment
- Shallow-depth cassettes
- Government & Defense
The SN Connector can be used in temperatures as low as -40°C and up to 75°C.
The SN Junior connector utilizes a latch. press the latch and it will release the connector from the adapter.
It will use 2 individual buffered fibers. Up to 900µm diameter.
The SN Junior will fit anything but a Compact or Mini series adapter.
