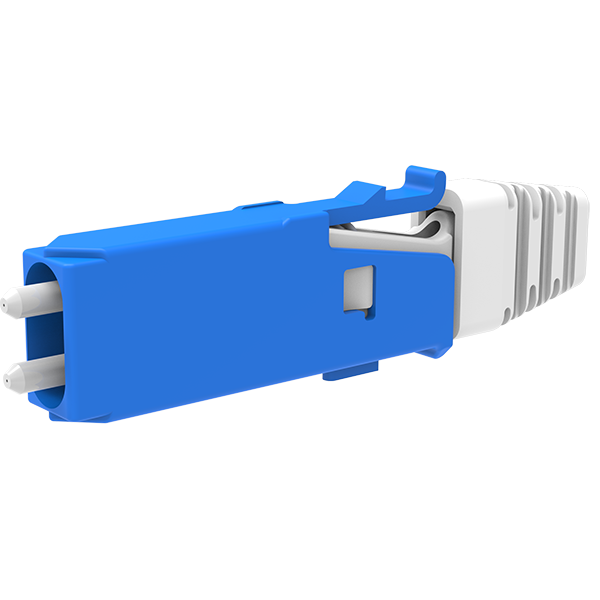

SENKO’s SN® Compact Connector is explicitly designed for the SN Compact adapter series in BTW (behind the wall) applications and is often deployed inside miniature cassette systems with little or no space above or below the adapters. The Compact series allows for 3-channel and 6-channel configurations to suit different cassette types and fiber counts. The SN Compact Connector features a latch-locking mechanism to confirm engagement with the adapter and uses industry-standard 1.25 mm ferrule technology that has been used in LC connectors for decades.
- Use only with SN Compact Adapters
- Latch locking mechanism
- Accepts 2 x 900 μm buffered fibers
- Extra small for space limited installations
| Parameters | Single-mode | Multimode | |||
| UPC | APC | MM | |||
| SM Premium Low Loss | SM Premium | SM Premium Low Loss | SM Premium | Premium | |
| Typical Insertion Loss (dB)* | 0.05 | 0.08 | 0.07 | 0.12 | 0.05 |
| Max Insertion Loss (dB)* | 0.15 | 0.20 | 0.15 | 0.25 | 0.15 |
| Typical Return Loss (dB) | ≥55 | ≥65 | ≥25 | ||
| Operating Temperature (°C) | -40 to +75 | ||||
| Durability | <0.2dB typical change, 500 mating’s | ||||
| Ferrule Ø | 125μm | 127μm | |||
* Per random mating testing IEC 61753-1
- Miniature low-profile cassettes
- High-density patch panels
- 1RU panels with three rows of adapters
- Front access fiber management systems
The SN Connector can be used in temperatures as low as -40°C and up to 75°C.
The SN Compact connector utilizes a latch. Press the latch and it will release the connector from the adapter.
It will use 2 individual buffered fibers up to 900µm in diameter.
The SN compact fits into a 3 or 6 Channel adapter.
