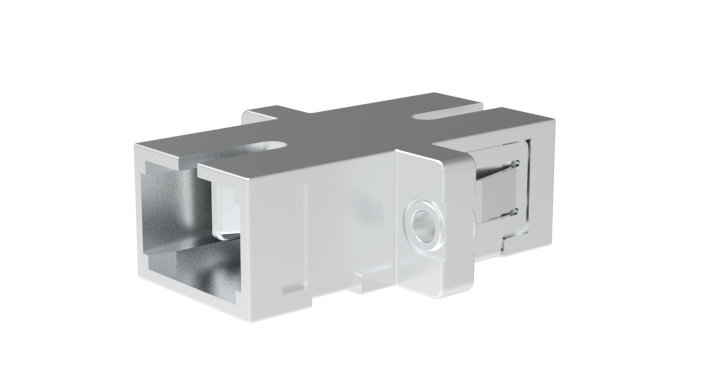

SENKO’s SC metal adapters are designed for applications that need EMI shielding or applications that could benefit from higher robustness of a metal housing.
- EMI protection
- Simplex and duplex options
- High Tg hook for secure latching
- Precision zirconia alignment sleeves
Parameters | Specifications |
Typical Insertion Loss (dB)* | 0.10 |
Max Insertion Loss (dB)* | 0.20 |
Operating Temperature (°C) | -40 to +75 |
Humidity Resistance | 95% |
Durability | 200 matings per GR-326-Core |
* Based on Master Grade jumper to Low Loss random mating test
Data Center
On Board Optics
Medical
Wireless
FTTH
Telecommunications
![logo-rosh](https://www.senko.com/wp-content/uploads/2021/09/logo-rosh-120x120.png)
![Reach logo](https://www.senko.com/wp-content/uploads/2021/09/Reach-Website-120x120.jpg)
![IEC logo](https://www.senko.com/wp-content/uploads/2021/09/IEC-Website-120x99.jpg)
![TIA logo](https://www.senko.com/wp-content/uploads/2021/09/TIA-Website-120x84.jpg)
The SC adapter can be used in temperatures as low as -40°C and up to 75°C.
Yes, it will work with all industry standard SC connectors.
It is recommended to apply additional gasket material for improved EMI shielding.
