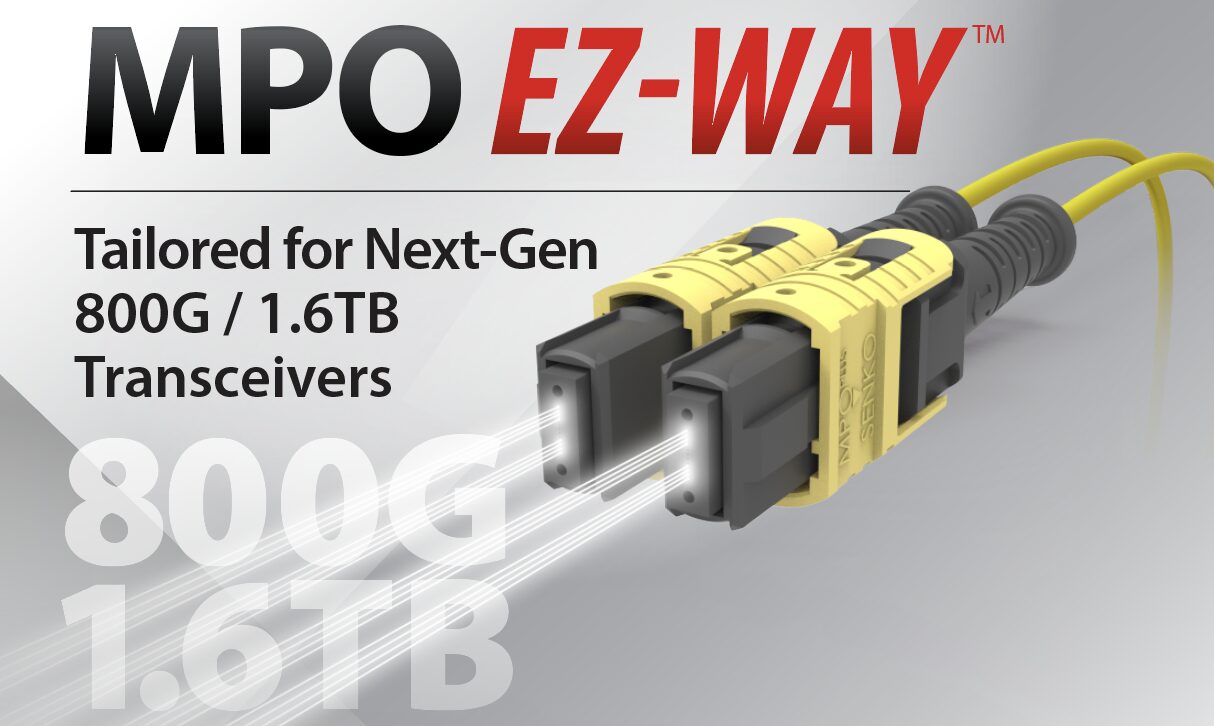

MPO PLUS EZ-Way Connector
SENKO’s soft-spring MPO PLUS EZ-Way™ connector is tailored for high-density scenarios where space is at a premium. Its compact design and push-pull boot are ideal for 800G dual belly-to-belly type transceivers and facilitate swift insertion and removal. The patented soft-spring housing design and reverse latch back post support enhanced mechanical strength while reducing the generation of plastic debris seen in traditional MPO, and providing a improved user-friendly patching process. Equipped with industry-leading Low Loss ferrules featuring a 20N spring for 16, 24, and 32 fiber versions, the soft-spring MPO PLUS EZ-Way connector sets a new standard.
- Fortified soft-spring design
- Industry leading low loss ferrules
- Compatible with dual MPO transceivers
- Push-pull boot
- Free floating ferrule
- 12/24 fiber center key
- 16/32 fiber offset key
| Parameters | Single-mode | Multimode | ||
| APC | MM | |||
| Low Loss | Standard | Low Loss | Standard | |
| Typical Insertion Loss (dB) 12-fiber | 0.10 | 0.20 | 0.08 | 0.15 |
| Max Insertion Loss (dB) 12-fiber | 0.25 | 0.70 | 0.25 | 0.50 |
| Typical Insertion Loss (dB) 24-fiber | 0.15 | 0.25 | 0.15 | 0.20 |
| Max Insertion Loss (dB) 24-fiber | 0.35 | 1.00 | 0.35 | 0.50 |
| Typical Insertion Loss (dB) 16-fiber | 0.15 | N/A | 0.15 | 0.20 |
| Max Insertion Loss (dB) 16-fiber | 0.35 | N/A | 0.35 | 0.60 |
| Typical Insertion Loss (dB) 32-fiber | N/A | N/A | N/A | 0.25 |
| Max Insertion Loss (dB) 32-fiber | N/A | N/A | N/A | 0.60 |
| Typical Return Loss (dB) | ≥60 | ≥25 | ||
| Operating Temperature (°C) | -40 to +75 | |||
| Durability | 500 mating cycles per TIA-568.3 | |||
Data Center
On Board Optics
Medical
Wireless
FTTH
Telecommunications
The MPO EZ-WAYconnector can be used in temperatures as low as -40°C and up to 75°C.
Yes, the compact design and push-pull boot are ideal for belly-to-belly mounting of these transceivers.
