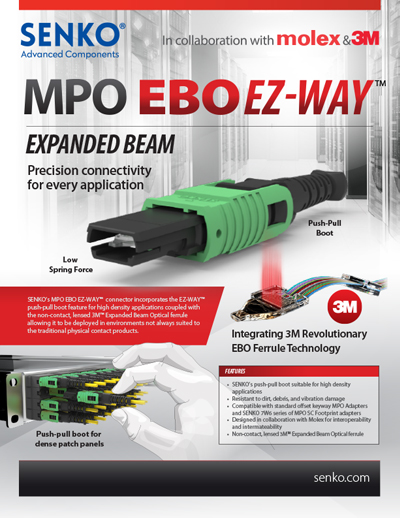

MPO EBO EZ-WAY Connector

SENKO’s MPO EBO EZ-WAY™ connector is engineered for high-density data centers, telecom networks, and harsh environments. Featuring the EZ-WAY Push Pull Boot, it integrates 3M™ Expanded Beam Optical technology, ensuring non-contact connectivity that resists dirt, debris, and vibration damage for long-term reliability.

  • High-density design with EZ-WAY™ Push Pull Boot
  • Non-contact, lensed 3M™ Expanded Beam Ferrule
  • Enhanced durability against dirt, debris, and vibration
  • Compatible with standard MPO adapters & SENKO 776 series (SC footprint)
  • Ideal for legacy applications and panel designs
  • Developed in collaboration with Molex for interoperability



Parameters
Single-mode Multimode
Typical Insertion Loss (dB) <0.70 <0.30
Typical Return Loss (dB) ≥55 ≥25
Operating Temperature (°C) -10°C to +60°C (dependent on the cable type)
Durability 1000 Mating Cycles
