LC+SC INSERT-EXTRACT TOOL

SENKO Part Number: RMT-703

  • Works for LC and SC assemblies
  • Ideal for high density patch panels
  • Securely holds SC and LC connectors

Email us at sales@senko.com or talk with your local SENKO Sales Representative for pricing.

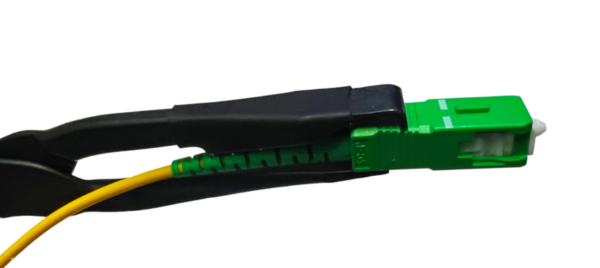

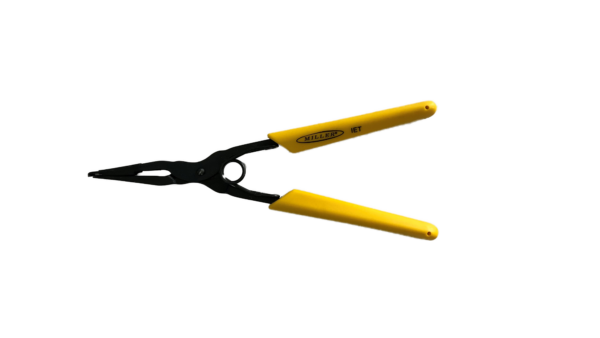

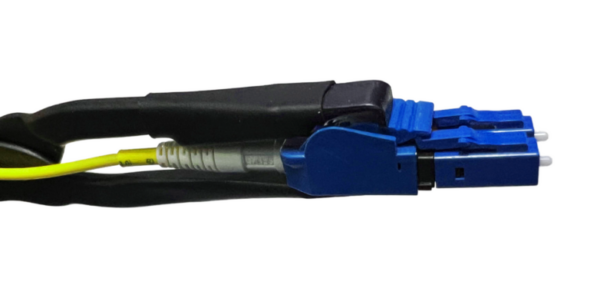

SENKO’S LC + SC INSERT-EXRACT TOOL makes it easy to insert and extract LC and SC assemblies into tight spaces. This tool use a spring grip to securely hold onto the latch of simplex and duplex LC assemblies and the connector housing slider slider on the SC connector. Our LC + SC INSERT-EXTRACT TOOL can easily be easily operated by both left or right handed operators. The tool’s handle grips are ergonomic making it comfortable to operate.

SENKO Part Number: RMT-703
Applicable Connectors:
  • LC simplex
  • LC duplex
  • LC uniboot duplex
  • SC
  • MU
  • MT-RJ
Dimensions: L = 222mm (8.75″)

H = 70mm (2.75″)

W = 19mm (0.75″)

W = 99g (0.2lb)
