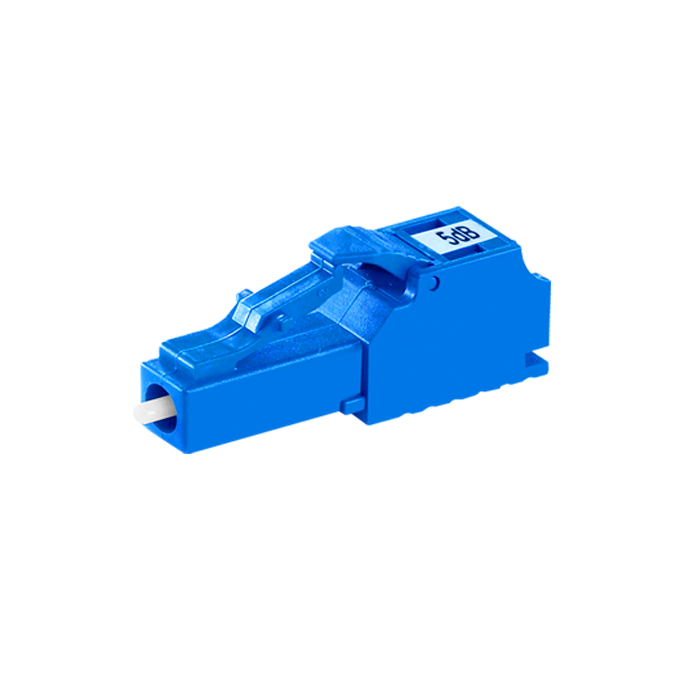

SENKO’S LC-HD Loopback is designed to provide a media of return patch for a fiber optic signal. Commonly used for burn-in testing and network troubleshooting, the high density push-pull tab design will fit into may applications.
- UPC or APC polish
- High Density Design
- Attenuation levels from 1-20dB
- Push-Pull Tab for easy installation
| Parameters | Single-mode | Multimode | ||||
| UPC | UPC | APC | APC | MM | MM | |
| Low Loss | Standard | Low Loss | Standard | Low Loss | Standard | |
| Typical Return Loss (dB) | ≥55 | ≥65 | ≥25 | |||
| Attenuation Tolerance | 0dB : -0/+.5dB, 1-5dB : +/-.5dB, 6-20dB : +/-10% | |||||
| Operational Wavelengths (nm) | SM: 1310/1550 +/-40 | MM: 850/1300 +/- 40 | ||||
| Operating Temperature (°C) | -40 to +75 | |||||
| Power (mW) | 500 | |||||
Data Center
Wireless
FTTH
Telecommunications
The LC loopback can be used in temperatures as low as -40°C and up to 75°C.
The loopback is rated for up to 500mw if properly polished, cleaned and maintained.
