The IP-ONE (Optical āNā Electrical) series accommodates power and fiber combined in one single connector. This IP68 rated hybrid connector helps simplify your connectivity with reduced cable and connectors featuring the Safe Lock Ring for a tamperproof protection. IP-25 series features 2 x 6 AWG conductors.
- IP68 rated hybrid connector
- LC 4-fiber and 2x 6AWG power
- Compatible with up to 19mm OD cable
- For High Power hybrid application
| Parameters | Single-mode | Multimode | |||
| UPC | UPC | APC | APC | MM | |
| Low Loss | Standard | Low Loss | Standard | Standard | |
| Typical Insertion Loss (dB) | 0.05 | 0.08 | 0.07 | 0.12 | 0.10 |
| Max Insertion Loss (dB) | 0.15 | 0.20 | 0.15 | 0.25 | 0.20 |
| Typical Return Loss (dB) | ā„55 | ā„65 | ā„25 | ||
| Operating Temperature (Ā°C) | – 40 to 75 | ||||
| Ferrule Ćø | 125Ī¼m | 127Ī¼m | |||
| IP-Rating | IP681 | ||||
| Pull Force | 100lbf or 450N | ||||
| Contact Power Rating | |||||
| Maximum DC | 600V / 70A2 | ||||
1 The IP rating was validated using a SENKO sourced cable and procedure. It is recommended to retest IP rating for any other cable types.
2 Current Rating: At 25C ambient temperature
- Hybrid trunk cable
- Hybrid distribution cable
The first digit represents the level of protection against solid bodies such as dust, and the second digit does the degree of protection against water. For example, IP68 means no ingress of dust, no water ingress >2m, >30mins.
IP-25 series supports from 13.0-19.0mm cable OD.

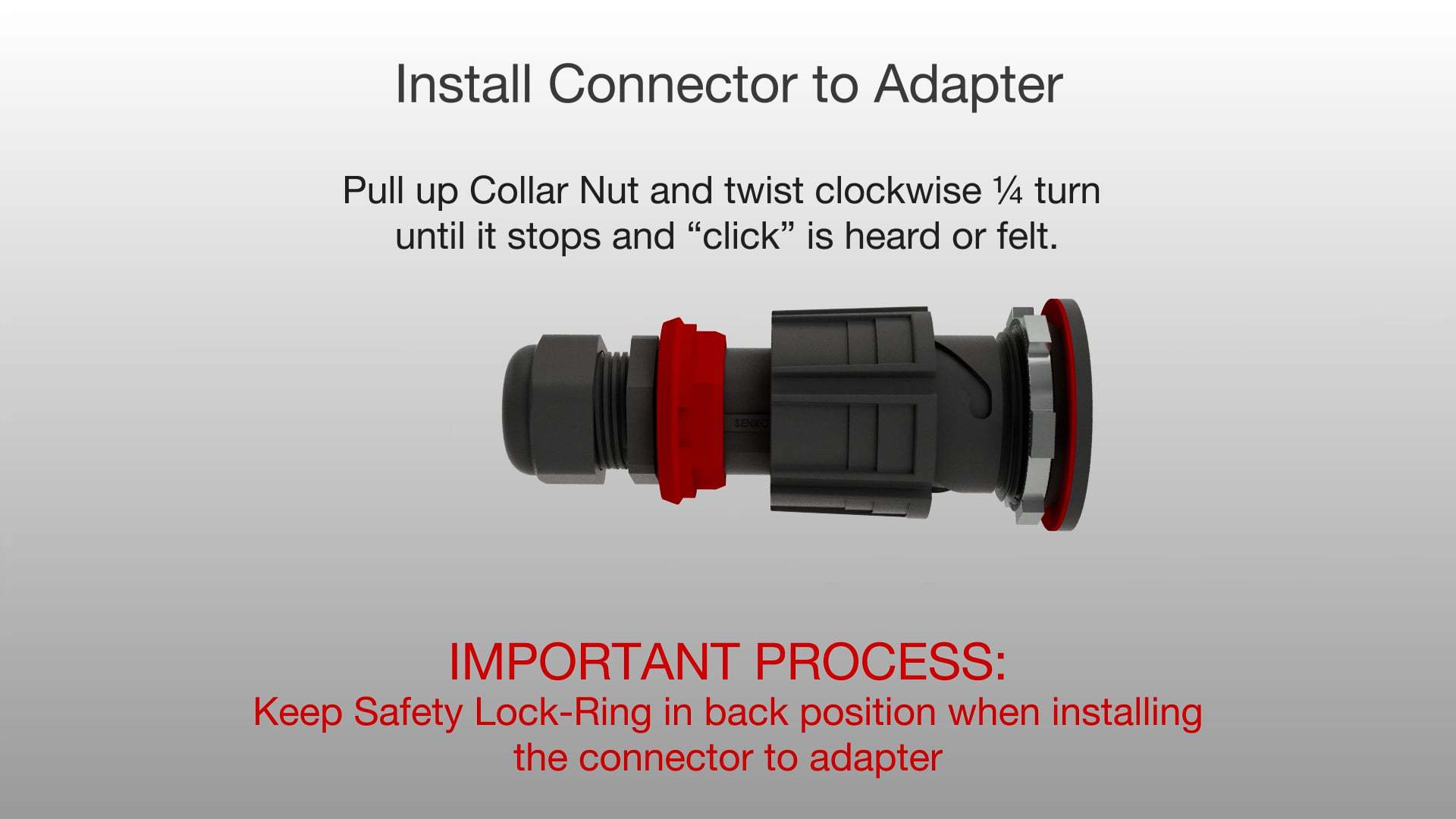

When the bayonet collar is fully engaged in lock position, the Safe Lock Ring can be slid up to avoid unintentional engagement.
